Product Overview

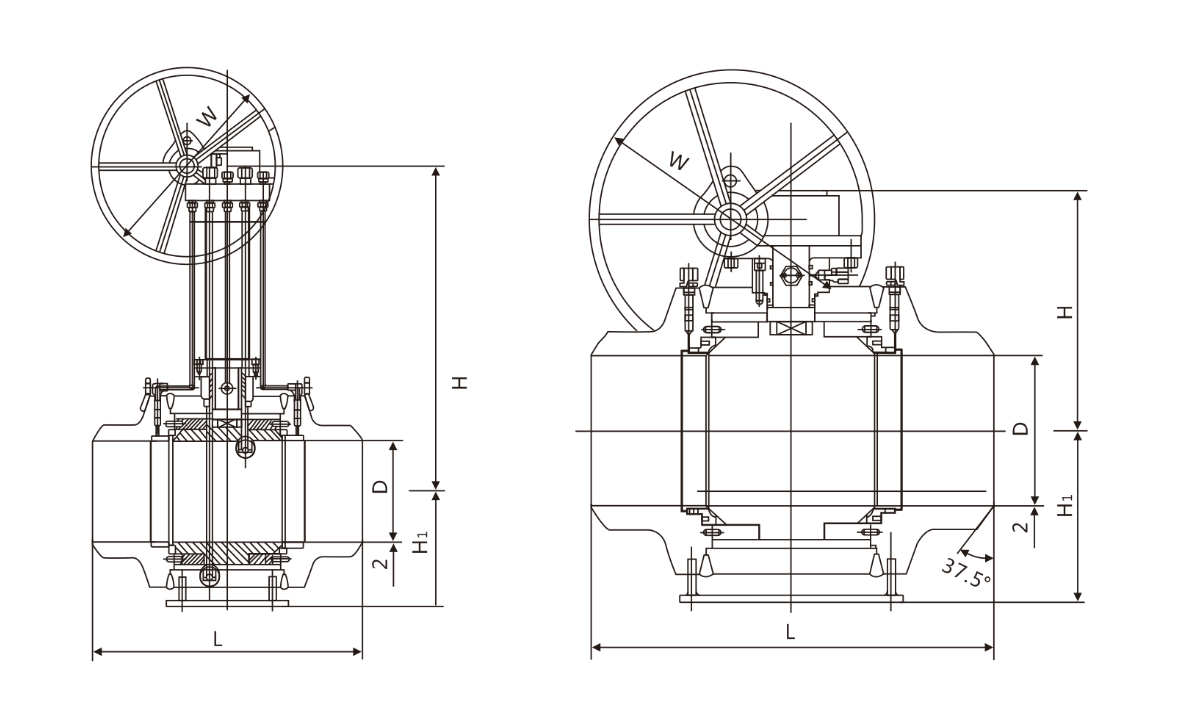

The fully welded ball valve for natural gas pipelines is a highly specialized, heavy-duty flow control solution designed exclusively for high-capacity natural gas transmission networks. The robust valve assembly primarily consists of a high-strength cylindrical welded steel body, a customizable extension stem (extended bonnet), and integrated relief/purge piping systems, allowing the entire structural configuration to be perfectly tailored to explicit client installation depths and trench designs.

Engineered with elite craftsmanship, this fully welded gas ball valve delivers superior operational stability and supreme reliability that conventional bolted-body valves cannot match. Characterized by its remarkable environmental adaptability, zero-maintenance design, and an exceptionally long service lifetime, this series is widely utilized as a dependable safe shut-off device in critical natural gas mainlines and hazardous coal gas utility infrastructures.

Target Applications

• City Gas Transmission Networks: High-pressure gas output headers, municipal distribution mainlines, and localized fuel gas supply branch lines.

• District Heating & HVAC Infrastructure: Primary supply headers for large-scale district heating equipment, thermal grids, and regional sub-stations.

• Heat Exchanger Stations: Reliable isolation and cyclic circuit opening/closing for multi-loop thermal energy transfer systems.

• Steel Mills & Metallurgical Utilities: Diverse fluid transportation networks, industrial exhaust and waste gas discharge ducts, blast furnace gas lines, and fuel oil/gas supply piping.

• Industrial Processing Machinery: High-temperature heat treatment pipelines, process plant gas lines, and general steam/thermal utility networks.

Product Features

• Zero External Leakage: Fully welded monolithic steel body construction eliminates body-to-bonnet bolted joints, permanently erasing any potential paths for external leakage or fugitive gas emissions into the atmosphere.

• Carbon-Fiber Reinforced Sealing: Utilizes advanced pre-loaded elastic spring washers combined with premium carbon-fiber reinforced PTFE seat rings, proven to survive tens of thousands of continuous mechanical actuations without bubble-tight integrity loss.

• High-Precision Spherical Grinding: The polished stainless steel ball is fabricated using world-class micro-grinding machinery, ensuring extreme geometric sphericity, low operating torque, and frictionless contact with the valve seats.

• Customized Stem & Body Dimensions: The overall face-to-face installation length and the total stem extension height can be flexibly altered and adjusted in perfect alignment with pipeline trench burial depth and civil engineering blueprints.

• Versatile Gas Mainline Ingestion: Highly optimized and extensively adopted across municipal centralized district heating lines, cross-country natural gas transmission headers, and heavy industrial fuel gas pipelines.
