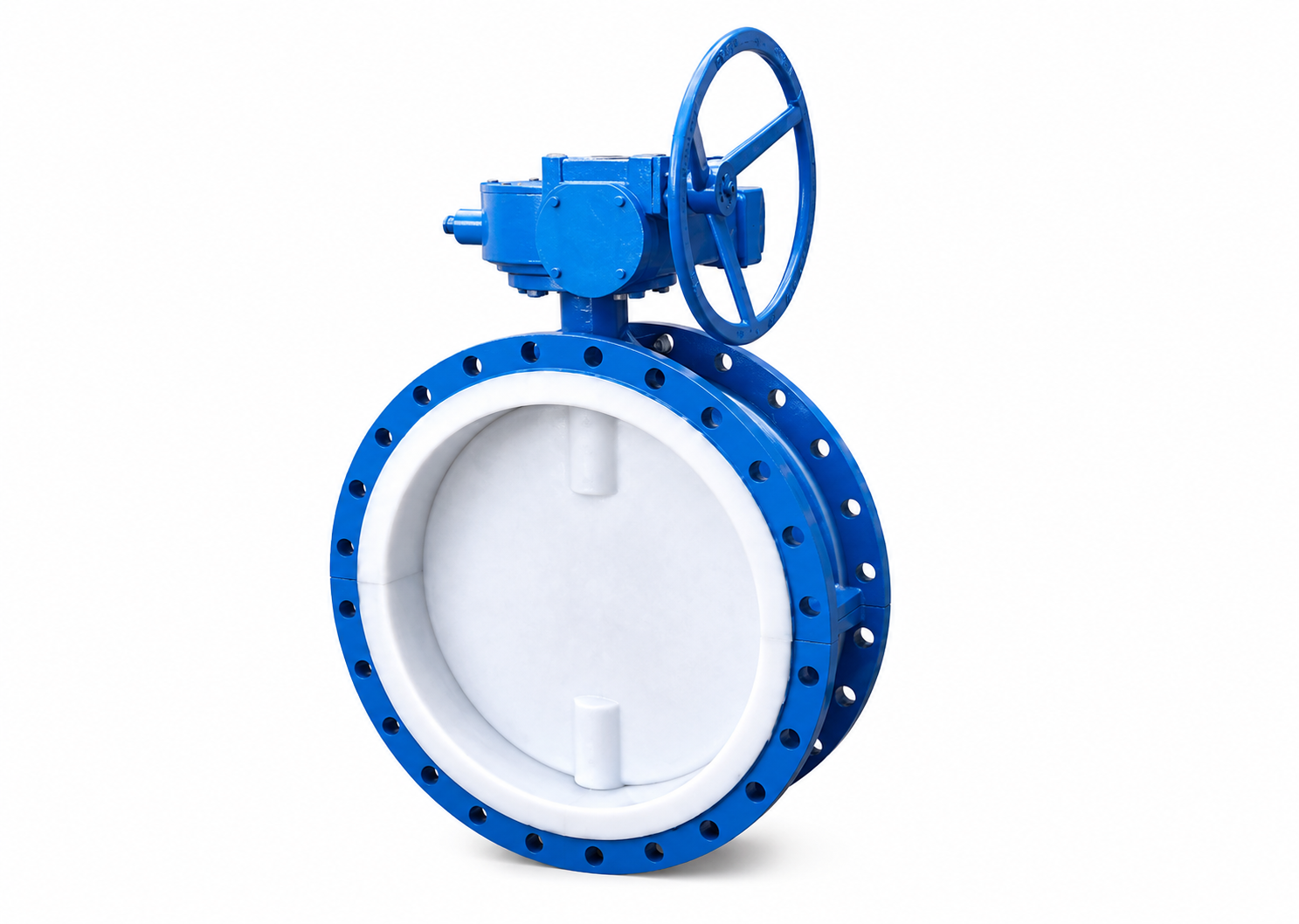

Flanged Fluorine Lined Centerline Butterfly Valve | DN40–1000 PN10–16
Flanged fluorine lined centerline butterfly valve available in DN40–1000 and PN10–16, featuring PTFE/FEP lining for superior corrosion resistance in sulfuric acid, hydrochloric acid, aqua regia, and chemical processing pipeline systems.
Technical Specifications
| Product Model | DV-BV-D41F46 / D341F46 |
|---|---|
| Nominal Size | DN40–1000 mm |
| Pressure Rating | PN10–16 |
| Applicable Temperature | -29°C to +150°C |
| Applicable Media | Strong Acid, Sulfuric Acid, Aqua Regia |
| Design Standard | GB/T 12237-1989 |
| Flange Standard | GB/T 9112–9131 |
| Face-to-Face Standard | GB/T 12221-1989 |
| Testing Standard | JB/T 9092-1999 |
Discription
Product Overview

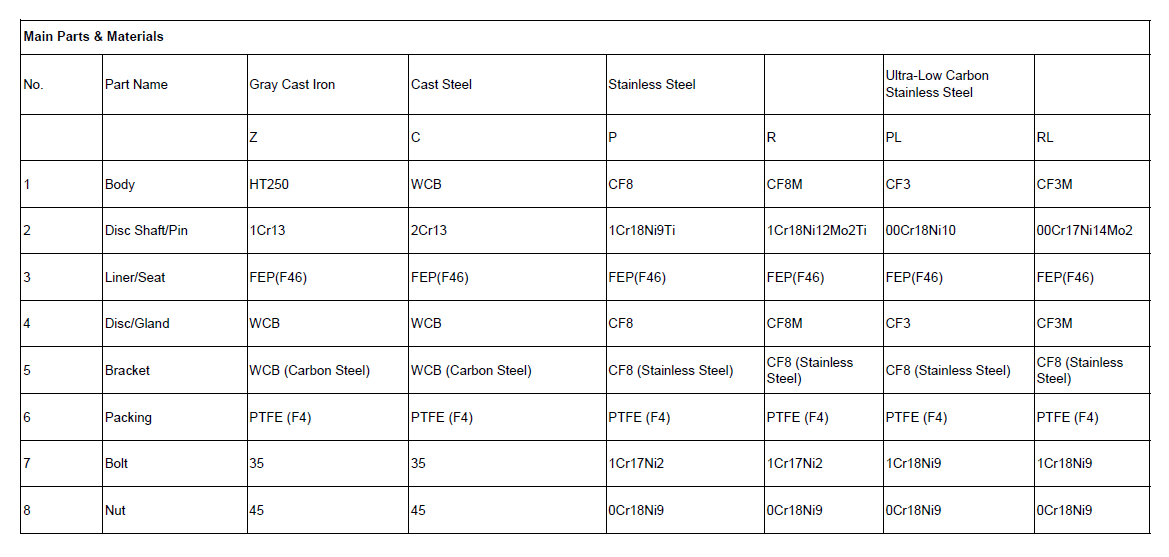

The flanged fluorine lined centerline butterfly valve is a widely used anti-corrosion industrial valve designed for aggressive chemical media applications. The valve body, disc, stem, and all wetted parts adopt full PTFE fluorine lining technology, providing excellent resistance to corrosion, chemical erosion, and high-purity media.
This valve is suitable for pipelines carrying sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, strong oxidizing agents, organic solvents, corrosive gases, and various chemical liquids. FEP lining also offers outstanding chemical stability and long-term sealing performance under demanding operating conditions.
The valve can be operated by lever handle, worm gear, pneumatic actuator, or electric actuator, making it suitable for flow regulation and shut-off applications in chemical processing, industrial pipelines, water treatment, pharmaceutical, and environmental protection systems.
Product Features
- Full PTFE/FEP fluorine lining for superior corrosion resistance
- Suitable for strong acids, alkalis, solvents, and oxidizing media
- Excellent chemical stability for harsh industrial environments

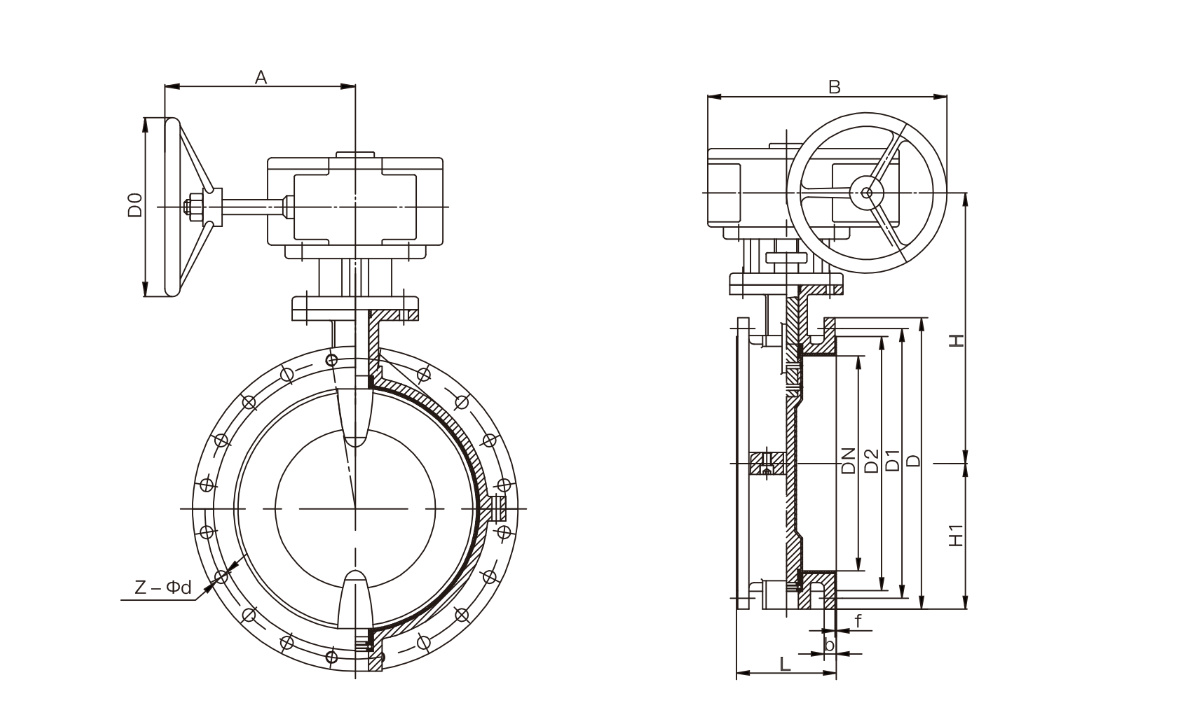

- Centerline butterfly valve structure with compact and lightweight design
- Reliable sealing performance with low operating torque
- Available with manual, pneumatic, and electric actuation
- Suitable for chemical, pharmaceutical, and anti-corrosion pipeline systems
- Long service life with reduced maintenance requirements
