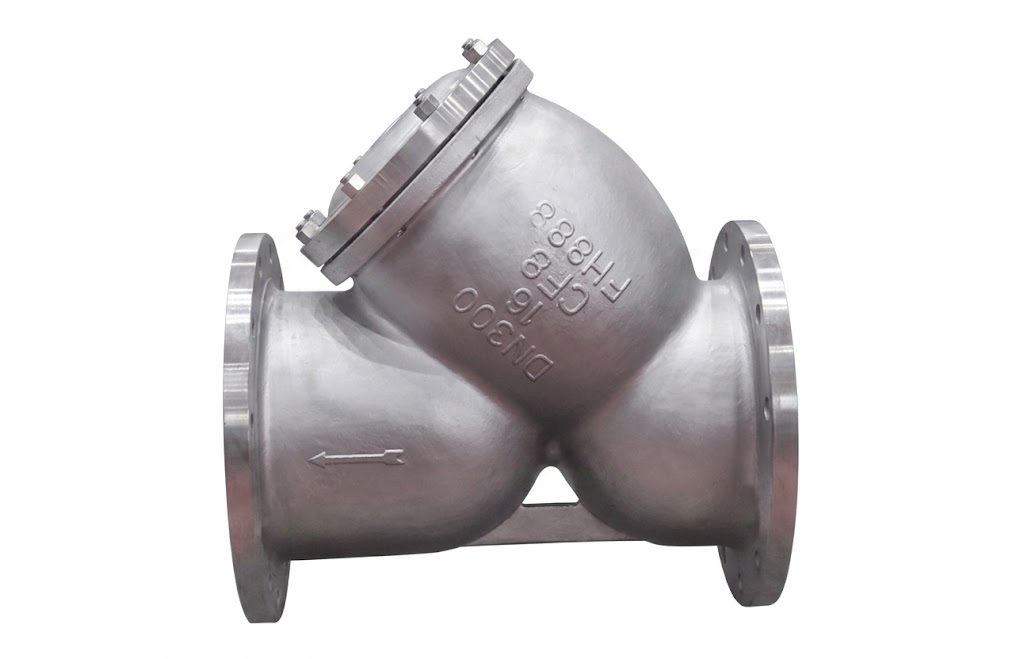

Stainless Steel Y-Strainer | Water, Oil, Gas Pipeline Filter
Industrial stainless steel Y-strainer (GL41W/GL41H) designed for efficient pipeline filtration. Features a DN50–DN500 size range, PN1.6 MPa nominal pressure, and flange connection. Built to handle water, oil, and gas (W.O.G.) media across temperatures from -30°C up to +380°C.

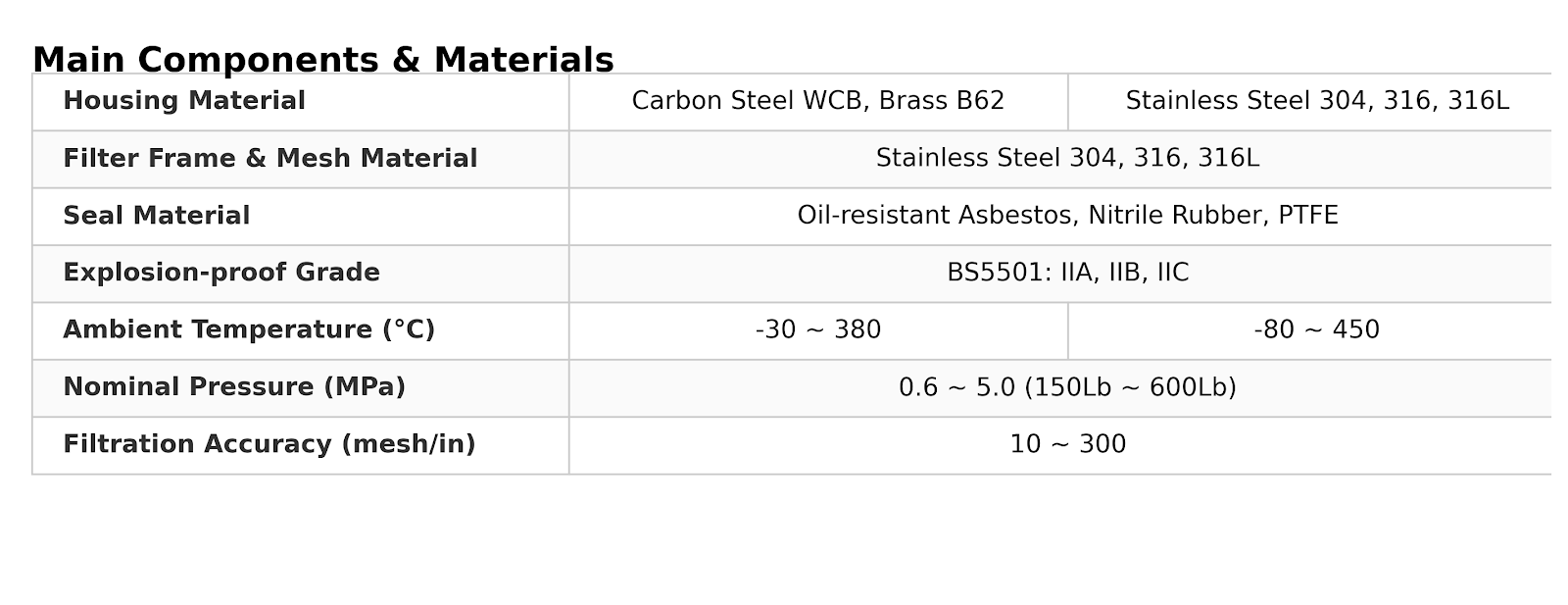

Technical Specifications
| Product Model | GL41W / GL41H |
|---|---|
| Nominal Diameter | DN50–DN500 mm |
| Nominal Pressure | PN1.6 MPa |
| Connection Type | Flange connection |
| Main Material | Stainless Steel |
| Applicable Media | Water, oil, and gas |
| Applicable Temperature | -30°C to +380°C |
Discription
Product Overview
The Stainless Steel Y-Strainer is an indispensable pipeline filtration solution designed for water, oil, and gas (W.O.G.) systems and various industrial equipment. It is engineered to capture and clear entrained solid impurities from the media within the pipe, safeguarding critical downstream components such as pressure reducing valves, relief valves, constant water level valves, and water pumps to ensure their continuous, normal operation. For maximum equipment protection, this flanged or threaded Y-type filter must be installed directly at the inlet section of the pipeline network.
Key Features
-
Optimized Multi-Media Application: Highly versatile and reliable, ideal for managing pipelines carrying water, oil, and gas media.
-
Precision Screen Mesh Options: Engineered with specific filtration ratings tailored to different media types to achieve optimal flow and protection:
-
Water Filtration: Utilizes a 10 to 30 mesh/cm² stainless steel filter screen.
-
Gas Filtration: Utilizes a 40 to 100 mesh/cm² stainless steel filter screen.
-
Oil Filtration: Utilizes a 60 to 200 mesh/cm² stainless steel filter screen.
-
-
Downstream Equipment Protection: Mechanically removes particulates, debris, and scale to prevent clogging and extend the service life of pumps and control valves.
-
Premium Stainless Steel Construction: Investment cast stainless steel housing offers excellent corrosion resistance and mechanical strength under demanding operational conditions.
