Product Overview

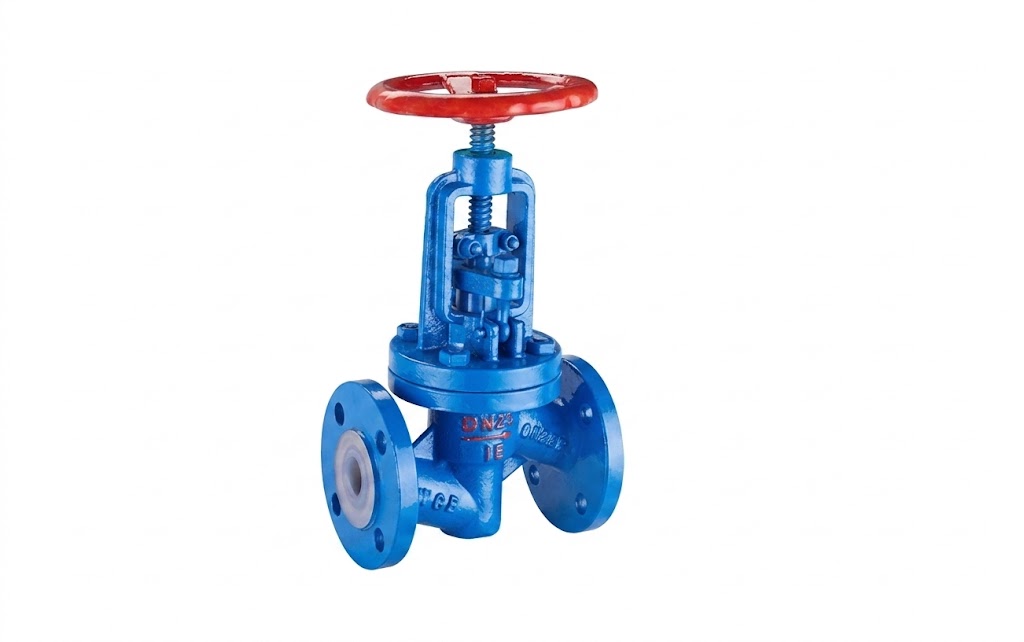

The Flanged Fluorine Lined Globe Valve adopts an integrated valve disc and stem design, with all wetted internal components fully lined with fluoropolymer material to provide excellent corrosion resistance. The valve features a compact structure, flexible operation, and short opening and closing stroke, making it suitable for corrosive media pipeline systems in chemical, petrochemical, and industrial applications.

Designed for shut-off and flow control applications, the valve is widely used in acid, alkali, solvent, and chemical processing systems. To protect the sealing surface from high-speed medium erosion, the valve is recommended for fully open or fully closed operation rather than throttling service.

Key Structural Features

• Integrated valve disc and stem structure ensures compact design and safe operation
• Fully fluorine-lined internal wetted parts provide excellent anti-corrosion performance
• Short valve stroke enables quick opening and closing operation
• Compact valve height saves installation space
• Suitable for shut-off applications in corrosive chemical pipeline systems
• Straight-through flow path design reduces flow resistance and pressure loss
• Direct-flow structure minimizes medium flow direction changes
• Suitable for manual, pneumatic, and electric actuator configurations
• Replaceable internal components allow adaptation to different working media
• Suitable for chemical, petrochemical, pharmaceutical, and industrial fluid control systems
