Product Overview

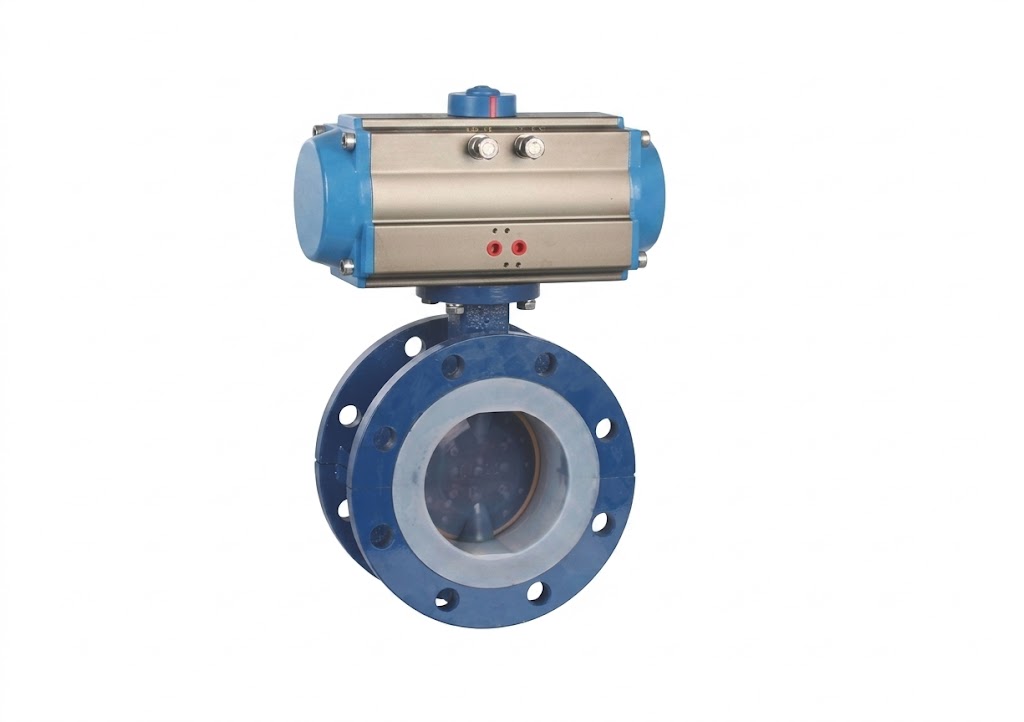

The Pneumatic Fluorine-Lined Flanged Butterfly Valve consists of a PTFE-sealed butterfly valve, a pneumatic actuator, and a pneumatic triplet (FRL unit, solenoid valve, limit switch, etc.).

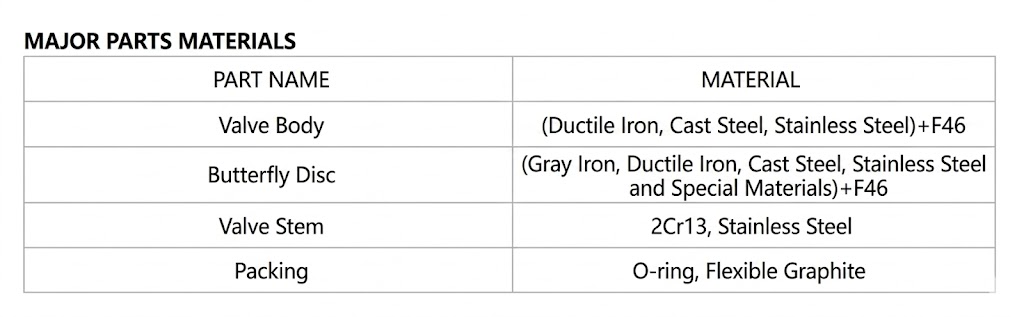

The core flow-passing components—including the flow channel, disc, and stem—are fully lined with high-molecular polymer materials such as F3, F4, and F46 (PTFE, PCTFE, FEP), delivering unparalleled anti-corrosion performance. Powered by compressed air, the valve receives industrial automation control signals. By working in tandem with positioners or solenoid valves, it achieves precise flow regulation and rapid shut-off.

Applicable Mediums & Industries

• Applicable Mediums: Strong alkalis, reducing agents, hydrochloric acid, nitric acid, hydrofluoric acid, aqua regia, organic acids, strong acids, concentrated vinegar, and other highly corrosive mediums.

• Target Industries: Widely utilized in water supply, drainage, and gas pipeline systems across food, pharmaceuticals, chemical processing, petroleum, power generation, and papermaking industries for precise flow regulation and medium isolation. It is also ideal for working conditions with strict cleanliness requirements.

Product Features

1. Innovative Design & Rapid On-Off

Featuring a scientific and highly optimized design, the valve boasts a compact structure, lightweight body, and minimal fluid resistance, allowing for rapid opening and closing cycles.

2. Low Operating Torque & High Efficiency

The optimized bearing and sealing structure drastically minimizes operating torque. This ensures smooth, effortless, and agile operation, while significantly reducing the energy consumption and size requirements of the matching pneumatic actuator.

3. Flexible Installation & Easy Maintenance

The valve can be installed at any position or angle along the pipeline. Its modular engineering makes on-site disassembly, part replacement, and routine maintenance exceptionally convenient.

4. Bi-Directional Sealing & Zero Leakage

The seals are fully replaceable. Thanks to the high-precision fit of the sealing pair, it guarantees extremely reliable performance, easily achieving the industrial benchmark of bi-directional sealing and zero leakage.

5. Aging Resistance & Extended Service Life

Engineered with premium fluorine-lined sealing materials (such as PTFE), the valve offers not only supreme corrosion resistance but also exceptional anti-aging and anti-creep properties. This significantly extends the overall service life under harsh and severe working conditions.
