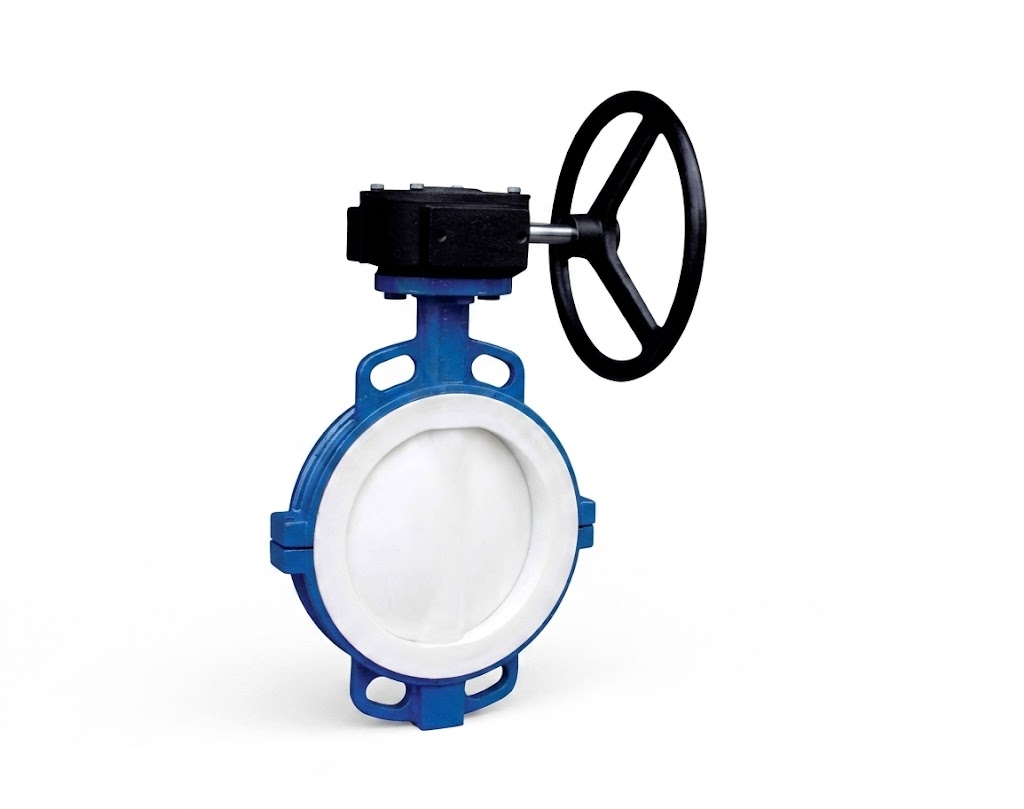

Wafer Butterfly Valve PTFE Lined DN40–DN1000 PN 10–16 Center Line Type

Wafer Butterfly Valve PTFE Lined DN40–DN1000 PN 10–16 Center Line Type

Wafer type PTFE lined butterfly valve designed for reliable corrosion resistance in industrial pipelines. Featuring a concentric center-line structure and F46 (PTFE) lining, it ensures tight sealing, low torque operation, and long service life under PN1.0–1.6MPa conditions, suitable for water treatment, chemical, and corrosive media applications.

Request a Quote
Categories:

Technical Specifications

Model

D371F4 / D371F46
Nominal Diameter

DN40–DN1000 mm
Nominal Pressure

PN1.0–1.6 MPa
Face-to-Face Dimension

GB/T 12221-1989
Gland Type

Compression gland type
Valve Body Type

Straight-through cast butterfly valve
Disc Type

Vertical plate (butterfly disc)
Sealing Material

fluorinated ethylene propylene), PTFE (F46
Design Standard

GB/T 2238-2008
Pressure Test Standard

GB/T 13927-2008
Flange Connection Standard

GB/T 9113.1-2000

Discription

Product Overview



The Wafer Centerline PTFE Lined Butterfly Valve features advanced lining technology, with a thick layer of high-grade PTFE (Teflon) applied to all wetted parts, including the valve body, disc, and stem. This ensures exceptional corrosion resistance, making it the ideal solution for handling highly aggressive media such as acids, alkalis, salts, strong oxidants, reducing agents, and organic solvents at any concentration.

It is widely used in demanding industries such as chemical processing, petroleum, pharmaceuticals, food and beverage, steel manufacturing, smelting, and papermaking for reliable flow shut-off and regulation.

Key Features



  • Innovative & Compact Design: Engineered for a lightweight profile with a unique structure that allows for rapid opening and closing.

  • Low Operating Torque: Designed for ease of use, the valve requires minimal force to operate, ensuring smooth and flexible handling.

  • Versatile Installation: Can be installed in any position within the piping system, offering maximum convenience for maintenance and repairs.

  • Superior Bidirectional Sealing: Features a replaceable sealing component that achieves reliable bidirectional zero-leakage performance.

  • Durable Material Construction: The sealing materials are highly resistant to aging and corrosion, ensuring an extended service life even in harsh industrial environments.
