Product Overview

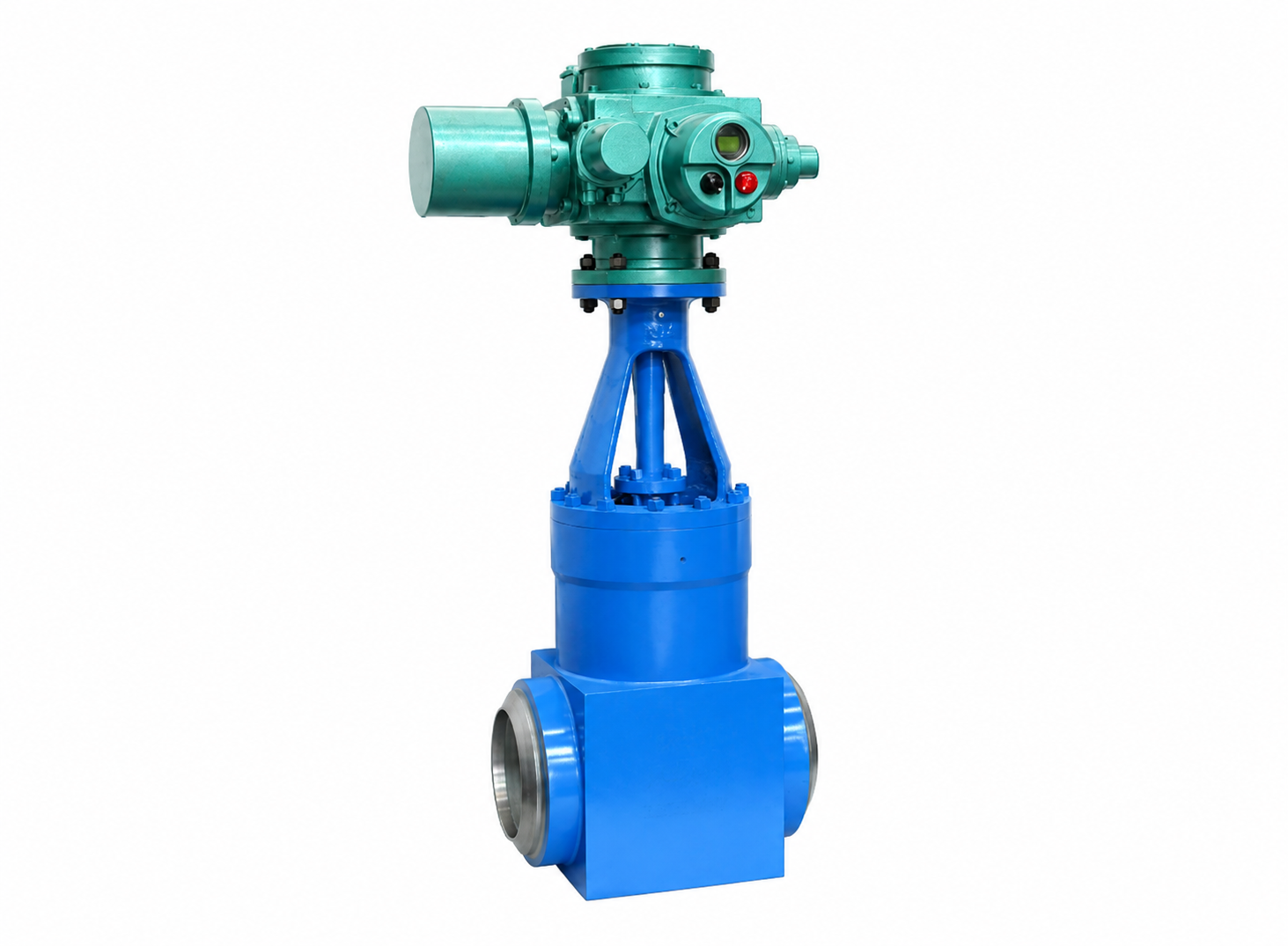

The Z960(2)Y Series Motorized Forged Steel High-Pressure Gate Valve is designed for severe service applications in critical piping systems across petroleum, chemical, hydraulic, and thermal power plants. Engineered to handle extreme operating conditions, it excels in safely cutting off or connecting pipeline media, reliably withstanding nominal pressures of PN32.0 to 42.0 MPa (PN320/PN420) and working temperatures ranging from -29°C to 550°C. It is widely compatible with challenging media including high-pressure water, superheated steam, oil products, acids, alkalis, ammonia, urea, sulfur-bearing fluids, and natural gas.

Key Features & Technical Advantages

1. Premium Material Selection & High Quality Control Manufactured from meticulously selected high-grade forged steel complying with stringent domestic and international standards. This guarantees superior structural integrity, uniform material density, and maximum pressure retention capacity.

2. Reliable Sealing & Aesthetic Industrial Design Fully meets international design specifications to ensure tight, bubble-tight sealing, exceptional operational performance, and a streamlined, professional appearance suited for world-class engineering projects.

3. Stellite™ Hard-Faced Sealing Pairs The sealing surfaces of both the wedge (disc) and the valve seat are overlay-welded with premium cobalt-based cemented carbide (Stellite) of varying hardness. This optimized pairing provides outstanding sealing reliability, high hardness, exceptional wear resistance, high-temperature stability, superior corrosion resistance, and excellent anti-galling properties, significantly prolonging the valve’s service life.

4. Nitrided & Q+T Treated Valve Stem The valve stem undergoes rigorous Quenching and Tempering (Q+T) followed by an advanced surface nitriding treatment. This dual processing delivers optimal core toughness combined with a highly scratch-resistant and anti-corrosive surface finish.

5. Flexible Wedge Structure & Impact Handwheel Utilizes a flexible wedge structure to compensate for piping stress deformation. For mid-to-large diameters, integrated thrust bearings minimize friction torque. The actuation setup is also equipped with an impact handwheel mechanism, making manual emergency override or operation smooth, effortless, and highly responsive.

6. Versatile Piping & Flange Configurations Can be custom-manufactured to match various piping standards, flange dimensions, and flange sealing face configurations, fully satisfying diverse global engineering specifications and tailored user requirements.
